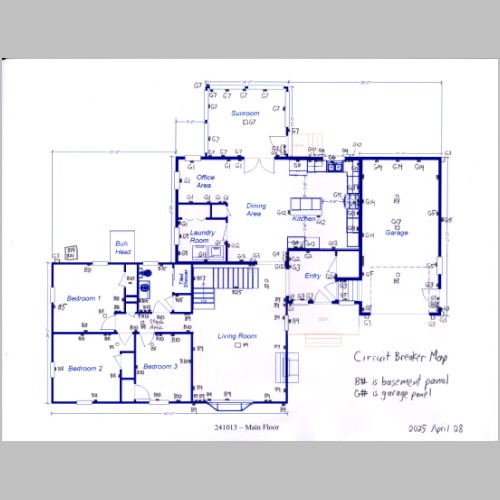

Day 365: On April 28th of the home improvement project I made
a circuit breaker map of everything electrical in the house. I
had one of these for the original house and it always came in
very handy. This task took a lot longer than I expected. First
I turned on everything in the house. Then I turned off all the
circuit breakers. Then I turned on one circuit breaker at a time
and figured out everything that was on that circuit. The panels
had errors in labeling. There were also some surprises along the
way. However, I now have an exact map of everything in the house. Tomorrow is one year since we signed the contract. Thanks for following the journey. I'll probably post a few things in the future as landscaping and paving are done. However, for now, That's All Folks! |
|
